TE series. Using the most advanced technologies such as wide bandgap Gallium Nitride semiconductors, high-frequency planar transformers and enhanced flyback topology, the TE series embraces a 45W (TECS/TEPS45F) and a 65W (TECS/TEPS65F) fitting into 1x2.3 (TEPS) or 1x3 (TECS) inch footprints. The 12V and 24V output versions are able to deliver 140% power to sustain peak loads with an outstanding efficiency of up to 93.5%. Two versions, either with pins (TEPS) or connectors (TECS) are available with compatible footprints to ease system upgrades. Standard products are delivered as an open frame though an optional dust protection case will be available.
Product features
Low-profile
Small and compact PCB construction
High efficiency
Harmonic attenuator (Complies with IEC61000-3-2)
Universal input （85 to 264VAC）
Built-in inrush current, overcurrent and overvoltage protection circuits
Class Ⅱ: No FG connection is necessary
TEPS/TECS models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| TEPS45F05 | 110/230VAC | N/A | 40W | Output 1: 5 (5 to 5)VDC | Output 1: 8A |
| TEPS45F12 | 110/230VAC | N/A | 45W | Output 1: 12 (12 to 12)VDC | Output 1: 3.8A |
| TEPS45F24 | 110/230VAC | N/A | 45W | Output 1: 24 (24 to 24)VDC | Output 1: 1.9A |

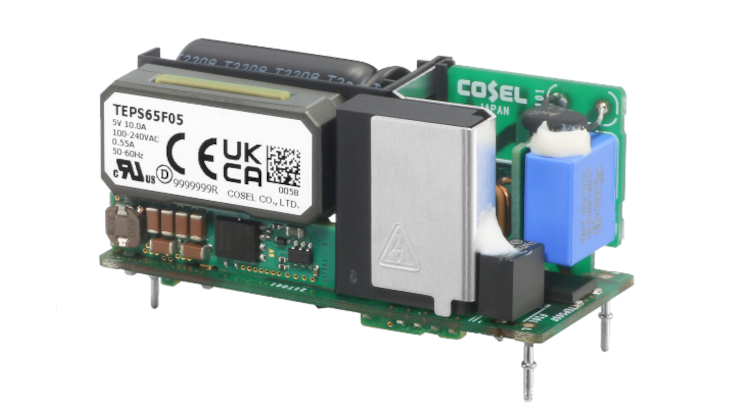

| TEPS65F05 | 110/230VAC | N/A | 50W | Output 1: 5 (5 to 5)VDC | Output 1: 10A |
| TEPS65F12 | 110/230VAC | N/A | 65W | Output 1: 12 (12 to 12)VDC | Output 1: 5.45A |
| TEPS65F24 | 110/230VAC | N/A | 66W | Output 1: 24 (24 to 24)VDC | Output 1: 2.75A |
| TECS45F05 | 110/230VAC | N/A | 40W | Output 1: 5 (5 to 5)VDC | Output 1: 8A |
| TECS45F12 | 110/230VAC | N/A | 45W | Output 1: 12 (12 to 12)VDC | Output 1: 3.8A |
| TECS45F24 | 110/230VAC | N/A | 45W | Output 1: 24 (24 to 24)VDC | Output 1: 1.9A |
| TECS65F05 | 110/230VAC | N/A | 50W | Output 1: 5 (5 to 5)VDC | Output 1: 10A |
| TECS65F12 | 110/230VAC | N/A | 65W | Output 1: 12 (12 to 12)VDC | Output 1: 5.45A |
| TECS65F24 | 110/230VAC | N/A | 66W | Output 1: 24 (24 to 24)VDC | Output 1: 2.75A |
