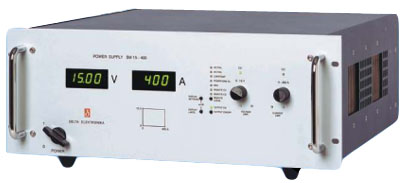

SM6000 Series
Delta Elektronika
6000W DC Power Supplies
- Datasheet
- Reach declaration
- RoHS declaration
Datasheet
Declaration
High quality laboratory switch mode power supply. With variable outputs and useful features.
Product features
Efficiency up to 90 %
Weight 27 kg
3 phase 380 V, 400 V, 415 V AC input 480 V optional (48 - 62 Hz, line to line voltage)
Active Power Factor Correction, PF=0.98
200 kHz MOSFET power conversion technique
0-5 V analog programmable (on both voltage and current)
Isolated analog programming with optional ISO AMP CARD to prevent earth loops
Ethernet,IEEE488 or RS232 pro gramming with optional interface cards
Very low HF-emission, OK for light industrial environment, immunity OK for industrial environment
Very low output ripple and spikes
Very stable output voltage or current (5.10-5-10-4)
Excellent dynamic response to load changes
Master/Slave parallel and series operation with equal current and voltage sharing
Can be used as a building block to form a high power unit
Designed for long life at full power
Protected against all overload and short circuit conditions
V and I control with 10-turn potentio meters, resolution 0.03 %. Optional with digital encoders
Silent blower, only runs when needed, variable speed
Output On/Off button, Inter lock-connector
SM6000 Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| SM15-400 | 3 phase | N/A | 6000W | Output 1: N/A (N/A to 15)VDC | Output 1: 400A |
| SM30-200 | 3 phase | N/A | 6000W | Output 1: N/A (N/A to 30)VDC | Output 1: 200A |
| SM45-140 | 3 phase | N/A | 6000W | Output 1: N/A (N/A to 45)VDC | Output 1: 140A |
| SM60-100 | 3 phase | N/A | 6000W | Output 1: N/A (N/A to 60)VDC | Output 1: 100A |
| SM70-90 | 3 phase | N/A | 6000W | Output 1: N/A (N/A to 70)VDC | Output 1: 90A |
| SM120-50 | 3 phase | N/A | 6000W | Output 1: N/A (N/A to 120)VDC | Output 1: 50A |
| SM300-20 | 3 phase | N/A | 6000W | Output 1: N/A (N/A to 300)VDC | Output 1: 20A |
| SM600-10 | 3 phase | N/A | 6000W | Output 1: N/A (N/A to 600)VDC | Output 1: 10A |
