PLW Load Series
Ametek
6kW to 250kW Water Cooled Programmable DC Electronic Load
- Datasheet
- Programming manual
- Manual
Datasheet
Manual
Traditional DC electronic load solutions are bulky and large in size. Most are offered with standard voltage, current and power ratings. In the ATE world, rack space is a highly coveted asset and application demands are constantly diversifying with new technology development. AMRELs PLW Series of water-cooled DC electronic loads are capable of being custom-tailored to meet your specific application requirements. The PLW Series also offers a unique condensation protection design, the highest power density and current rating, as well as the widest selection of high-voltage models on the market.
Product features
Broadest model selection: 6kW, 9kW, 12kW, 18kW, 24kW, 36kW. Additional standard models above 36kW, up to 250kW, are available
Standard 60V, 120V, 400V, 600V, 800V and 1000V voltage ratings
PLW models offer ultra-compact footprint and boasts one of the industry’s highest power densities, 18kW in 2U
Anti-condensation: Intelligent fully-integrated temperature control circuit and solenoid valve
Standard LabWindows and LabVIEW drivers and SCPI command set

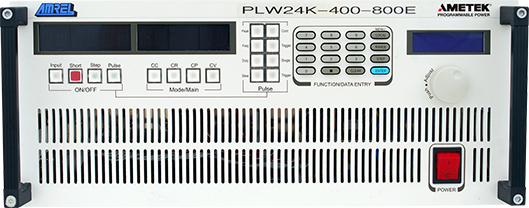

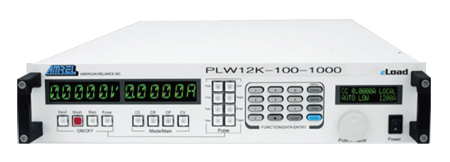

PLW Load Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| PLW6K-60-1000 | 110/230VAC | N/A | 6000W | Output 1: 60 (0.9 to 60)VDC | Output 1: 1000A |
| PLW6K-120-600 | 110/230VAC | N/A | 6000W | Output 1: 120 (1.5 to 120)VDC | Output 1: 600A |
| PLW6K-400-300 | 110/230VAC | N/A | 6000W | Output 1: 400 (3.6 to 400)VDC | Output 1: 300A |
| PLW6K-600-200 | 110/230VAC | N/A | 6000W | Output 1: 600 (12 to 600)VDC | Output 1: 200A |
| PLW6K-800-25 | 110/230VAC | N/A | 6000W | Output 1: 800 (6 to 800)VDC | Output 1: 25A |
| PLW6K-1000-25 | 110/230VAC | N/A | 6000W | Output 1: 1000 (6 to 1000)VDC | Output 1: 25A |
| PLW9K-60-1500 | 110/230VAC | N/A | 9000W | Output 1: 60 (0.9 to 60)VDC | Output 1: 1500A |
| PLW9K-120-1000 | 110/230VAC | N/A | 9000W | Output 1: 120 (1.5 to 120)VDC | Output 1: 1000A |
| PLW9K-400-400 | 110/230VAC | N/A | 9000W | Output 1: 400 (3.6 to 400)VDC | Output 1: 400A |
| PLW9K-600-300 | 110/230VAC | N/A | 9000W | Output 1: 600 (12 to 600)VDC | Output 1: 300A |
| PLW9K-800-40 | 110/230VAC | N/A | 9000W | Output 1: 800 (6 to 800)VDC | Output 1: 40A |
| PLW9K-1000-40 | 110/230VAC | N/A | 9000W | Output 1: 1000 (6 to 1000)VDC | Output 1: 40A |
| PLW12K-60-1500 | 110/230VAC | N/A | 12000W | Output 1: 60 (0.75 to 60)VDC | Output 1: 1500A |
| PLW12K-120-1200 | 110/230VAC | N/A | 12000W | Output 1: 120 (1.56 to 120)VDC | Output 1: 1200A |
| PLW12K-400-600 | 110/230VAC | N/A | 12000W | Output 1: 400 (3.6 to 400)VDC | Output 1: 600A |
| PLW12K-600-400 | 110/230VAC | N/A | 12000W | Output 1: 600 (12 to 600)VDC | Output 1: 400A |
| PLW12K-800-50 | 110/230VAC | N/A | 12000W | Output 1: 800 (6 to 800)VDC | Output 1: 50A |
| PLW12K-1000-50 | 110/230VAC | N/A | 12000W | Output 1: 1000 (6 to 1000)VDC | Output 1: 50A |
| PLW18K-60-1500 | 110/230VAC | N/A | 18000W | Output 1: 60 (0.6 to 60)VDC | Output 1: 1500A |
| PLW18K-120-1500 | 110/230VAC | N/A | 18000W | Output 1: 120 (1.5 to 120)VDC | Output 1: 1500A |
| PLW18K-400-800 | 110/230VAC | N/A | 18000W | Output 1: 400 (3.6 to 400)VDC | Output 1: 800A |
| PLW18K-600-600 | 110/230VAC | N/A | 18000W | Output 1: 600 (12 to 600)VDC | Output 1: 600A |
| PLW18K-800-75 | 110/230VAC | N/A | 18000W | Output 1: 800 (6 to 800)VDC | Output 1: 75A |
| PLW18K-1000-75 | 110/230VAC | N/A | 18000W | Output 1: 1000 (6 to 1000)VDC | Output 1: 75A |
| PLW24K-60-1500 | 110/230VAC | N/A | 24000W | Output 1: 60 (0.45 to 60)VDC | Output 1: 1500A |
| PLW24K-120-1500 | 110/230VAC | N/A | 24000W | Output 1: 120 (1.2 to 120)VDC | Output 1: 1500A |
| PLW24K-400-1200 | 110/230VAC | N/A | 24000W | Output 1: 400 (3.6 to 400)VDC | Output 1: 1200A |
| PLW24K-600-800 | 110/230VAC | N/A | 24000W | Output 1: 600 (12 to 600)VDC | Output 1: 800A |
| PLW24K-800-100 | 110/230VAC | N/A | 24000W | Output 1: 800 (6 to 800)VDC | Output 1: 100A |
| PLW24K-1000-100 | 110/230VAC | N/A | 24000W | Output 1: 1000 (6 to 1000)VDC | Output 1: 100A |
| PLW36K-60-1500 | 110/230VAC | N/A | 36000W | Output 1: 60 (0.45 to 60)VDC | Output 1: 1500A |
| PLW36K-120-1500 | 110/230VAC | N/A | 36000W | Output 1: 120 (0.9 to 120)VDC | Output 1: 1500A |
| PLW36K-400-1500 | 110/230VAC | N/A | 36000W | Output 1: 400 (3.3 to 400)VDC | Output 1: 1500A |
| PLW36K-600-1000 | 110/230VAC | N/A | 36000W | Output 1: 600 (10 to 600)VDC | Output 1: 1000A |
| PLW36K-800-150 | 110/230VAC | N/A | 36000W | Output 1: 800 (6 to 800)VDC | Output 1: 150A |
| PLW36K-1000-150 | 110/230VAC | N/A | 36000W | Output 1: 1000 (6 to 1000)VDC | Output 1: 150A |
