Industrial Line 300

OBP36 Series

Powerbox

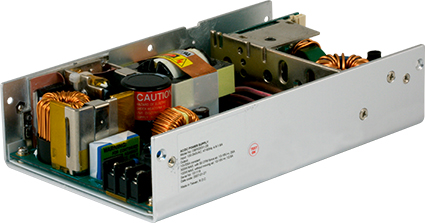

300W Single and Multiple Output AC/DC Switch Mode Power Supply

OBP36 Series

***Not for new design*** The Powerbox Industrial line product range is a family of high density power supplies intended for applications demanding extremely high performance on both reliability and electrical safety. The products utilize innovative technologies and offers both AC/DC and DC/DC conversion, offering a wide range of inputs and output combinations. The portfolio includes high density externals, open frames, enclosed, DIN-rail, and board mounted DC/DC converters.

Product features

EN61000-3-2 class A and D compliant

Power Factor 0.98 typical

Overvoltage protection

Short-circuit protection

Power Fail Detect (PFD) signal

100% burn-in at full rated load

Remote sense on output #1 and output #2

Remote inhibit – TTL high to disable output

Compliant with RoHS requirements

OBP36 Series models

Model # Input voltage AC Input voltage DCnom
(min-max)		 Output power Outputs Vnom (min-max) Outputs A max
OBP36016B110/230VACN/A150W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 1:
60A
OBP36031B110/230VACN/A150W
Output 1:
12 (11.4 to 12.6)VDC
Output 1:
25A
OBP36037B110/230VACN/A150W
Output 1:
15 (14.25 to 15.75)VDC
Output 1:
20A
OBP36046B110/230VACN/A150W
Output 1:
24 (22.8 to 25.2)VDC
Output 1:
12.5A
OBP36055B110/230VACN/A150W
Output 1:
30 (28.5 to 31.5)VDC
Output 1:
10A
OBP36170B110/230VACN/A150W
Output 1:
48 (45.6 to 50.4)VDC
Output 1:
6.3A
OBP36403B110/230VACN/A125W
Output 1:
3.3 (3.135 to 3.465)VDC
Output 2:
5.1 (4.845 to 5.355)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
35A
Output 2:
22A
Output 3:
4A
Output 4:
4A
OBP36404B110/230VACN/A150W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
5.1 (4.335 to 5.865)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36407B110/230VACN/A150W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
15 (14.25 to 15.75)VDC
Output 3:
15 (12.75 to 17.25)VDC
Output 4:
24 (20.4 to 27.6)VDC
Output 1:
35A
Output 2:
8A
Output 3:
4A
Output 4:
2.5A
OBP36410B110/230VACN/A150W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36413B110/230VACN/A150W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
24 (20.4 to 27.6)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
2.5A
OBP36418B110/230VACN/A150W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
15 (12.75 to 17.25)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36419B110/230VACN/A150W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
24 (22.8 to 25.2)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
35A
Output 2:
5A
Output 3:
4A
Output 4:
4A
OBP36424B110/230VACN/A150W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
24 (22.8 to 25.2)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
15 (12.75 to 17.25)VDC
Output 1:
35A
Output 2:
5A
Output 3:
4A
Output 4:
4A
OBP36427B110/230VACN/A150W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
24 (20.4 to 27.6)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
2.5A
OBP36430B110/230VACN/A150W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
6.3A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36433B110/230VACN/A150W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
24 (20.4 to 27.6)VDC
Output 1:
6.3A
Output 2:
10A
Output 3:
4A
Output 4:
2.5A
OBP36436B110/230VACN/A150W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
6.3A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36439B110/230VACN/A150W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
24 (22.8 to 25.2)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
15 (12.75 to 17.25)VDC
Output 1:
6.3A
Output 2:
5A
Output 3:
4A
Output 4:
4A
OBP36442B110/230VACN/A150W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
24 (22.8 to 25.2)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
6.3A
Output 2:
5A
Output 3:
4A
Output 4:
4A
OBP36016C110/230VACN/A300W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 1:
60A
OBP36031C110/230VACN/A300W
Output 1:
12 (11.4 to 12.6)VDC
Output 1:
25A
OBP36037C110/230VACN/A300W
Output 1:
15 (14.25 to 15.75)VDC
Output 1:
20A
OBP36046C110/230VACN/A300W
Output 1:
24 (22.8 to 25.2)VDC
Output 1:
12.5A
OBP36055C110/230VACN/A300W
Output 1:
30 (28.5 to 31.5)VDC
Output 1:
10A
OBP36170C110/230VACN/A300W
Output 1:
48 (45.6 to 50.4)VDC
Output 1:
6.3A
OBP36403C110/230VACN/A250W
Output 1:
3.3 (3.135 to 3.465)VDC
Output 2:
5.1 (4.845 to 5.355)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
35A
Output 2:
22A
Output 3:
4A
Output 4:
4A
OBP36404C110/230VACN/A300W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
5.1 (4.335 to 5.865)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36407C110/230VACN/A300W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
15 (14.25 to 15.75)VDC
Output 3:
15 (12.75 to 17.25)VDC
Output 4:
24 (20.4 to 27.6)VDC
Output 1:
35A
Output 2:
8A
Output 3:
4A
Output 4:
2.5A
OBP36410C110/230VACN/A300W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36413C110/230VACN/A300W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
24 (20.4 to 27.6)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
2.5A
OBP36418C110/230VACN/A300W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
15 (12.75 to 17.25)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36419C110/230VACN/A300W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
24 (22.8 to 25.2)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
35A
Output 2:
5A
Output 3:
4A
Output 4:
4A
OBP36424C110/230VACN/A300W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
24 (22.8 to 25.2)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
15 (12.75 to 17.25)VDC
Output 1:
35A
Output 2:
5A
Output 3:
4A
Output 4:
4A
OBP36427C110/230VACN/A300W
Output 1:
5.1 (4.845 to 5.355)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
24 (20.4 to 27.6)VDC
Output 1:
35A
Output 2:
10A
Output 3:
4A
Output 4:
2.5A
OBP36430C110/230VACN/A300W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
6.3A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36433C110/230VACN/A300W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
24 (20.4 to 27.6)VDC
Output 1:
6.3A
Output 2:
10A
Output 3:
4A
Output 4:
2.5A
OBP36436C110/230VACN/A300W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
12 (11.4 to 12.6)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
6.3A
Output 2:
10A
Output 3:
4A
Output 4:
4A
OBP36439C110/230VACN/A300W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
24 (22.8 to 25.2)VDC
Output 3:
5.1 (4.335 to 5.865)VDC
Output 4:
15 (12.75 to 17.25)VDC
Output 1:
6.3A
Output 2:
5A
Output 3:
4A
Output 4:
4A
OBP36442C110/230VACN/A300W
Output 1:
24 (22.8 to 25.2)VDC
Output 2:
24 (22.8 to 25.2)VDC
Output 3:
12 (10.2 to 13.8)VDC
Output 4:
12 (10.2 to 13.8)VDC
Output 1:
6.3A
Output 2:
5A
Output 3:
4A
Output 4:
4A
