LMA
LMA150F
Cosel
150W Single Output AC/DC Medical Switch Mode Power Supply
- Datasheet
- Optional parts
- Manual
- RoHS declaration
Datasheet
Manual
Declaration

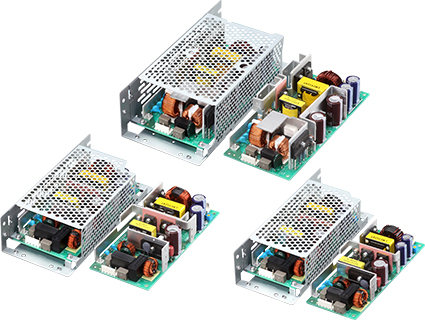

Open Frame Medical Type. 200% Peak Current Function(option)
Product features
Small (achived 28-42% smaller than existing our product in area) and compact PCB construction
Size dimensions compatible with LFA series, global input Rugged PCB type P.S.
Universal input (AC85 - 264V)
Harmonic attenuator (Complies with IEC61000-3-2 ClassA)
Peak Current Function(Option -H)
Remote ON/OFF control (Optional -R2) reducing standby power
Built in power factor correction circuitry for decreased AC input capacity
Built-in inrush current, overcurrent and overvoltage protection circuits
LMA150F models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| LMA150F-24-Y | 110/230VAC | N/A | 151.2W | Output 1: 24 (19.2 to 27.5)VDC | Output 1: 6.3A |
| LMA150F-24-HY | 110/230VAC | N/A | 151.2W | Output 1: 24 (19.2 to 27.5)VDC | Output 1: 6.3A |
