LHA15F Series
Cosel
15W Single Output AC/DC Switch Mode Power Supply
- Datasheet
- Optional parts
- Manual
- RoHS declaration
Datasheet
Manual
Declaration

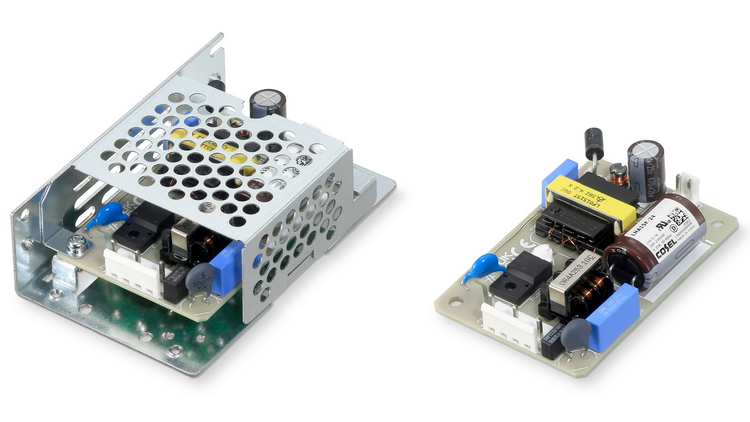

Open frame power supply with universal input. Small and compact design.
Product features
High Efficency
Small and compact PCB construction (Mounting area is 16% reduced,compared with existing model)
Same Mounting area and mounting hole position as LFA10F
Low Noise
Harmonic attenuator (Complies with IEC61000-3-2)
Extensive optional parts such as dedicated harness are available
Wide operating temperature(Rated output is available at 55℃)
Low leakage current (0.15mAmax at AC240V,60Hz 66% reduced,compared with existing model)
Low power consumption at no load (0.4Wtyp at AC230V 15% reduced,compared with existing model)
Complies with SEMI F47 (Refer to section 1.1 of the instruction manuals)
LHA15F Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| LHA15F-3R3-Y | 110/230VAC | 245 (120 to 370)VDC | 9.9W | Output 1: 3.3 (2.85 to 3.63)VDC | Output 1: 3A |
| LHA15F-5 | 110/230VAC | 245 (120 to 370)VDC | 15W | Output 1: 5 (4.5 to 5.5)VDC | Output 1: 3A |
| LHA15F-12 | 110/230VAC | 245 (120 to 370)VDC | 15.6W | Output 1: 12 (10.8 to 13.2)VDC | Output 1: 1.3A |
| LHA15F-15 | 110/230VAC | 245 (120 to 370)VDC | 15W | Output 1: 15 (13.5 to 16.5)VDC | Output 1: 1A |
| LHA15F-24 | 110/230VAC | 245 (120 to 370)VDC | 16.8W | Output 1: 24 (21.6 to 26.4)VDC | Output 1: 0.7A |
