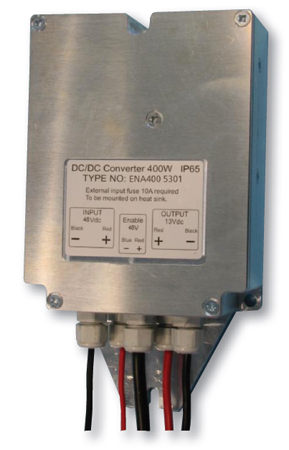

The ENA400 series of 400W DC/DC converters are highly ruggedized with IP65 metal enclosure to withstand automotive and industrial machinery requirements.
Product features
Very rugged design
Suitable for vehicles
Isolated output
ENA400 Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| ENA4005301 | N/A | 48 (39 to 70)VDC | 400W | Output 1: 13.8 (13.8 to 13.8)VDC | Output 1: 29A |
| ENA4005303 | N/A | 72 (50 to 100)VDC | 400W | Output 1: 13.8 (13.8 to 13.8)VDC | Output 1: 29A |
| ENA4005305 | N/A | 102 (85 to 140)VDC | 400W | Output 1: 13.8 (13.8 to 13.8)VDC | Output 1: 29A |
