Asterion DC
Asterion DC ASM
Ametek
DC Source 5100W Dual & Triple Output Programmable Power Supply. 1U Rack Style.

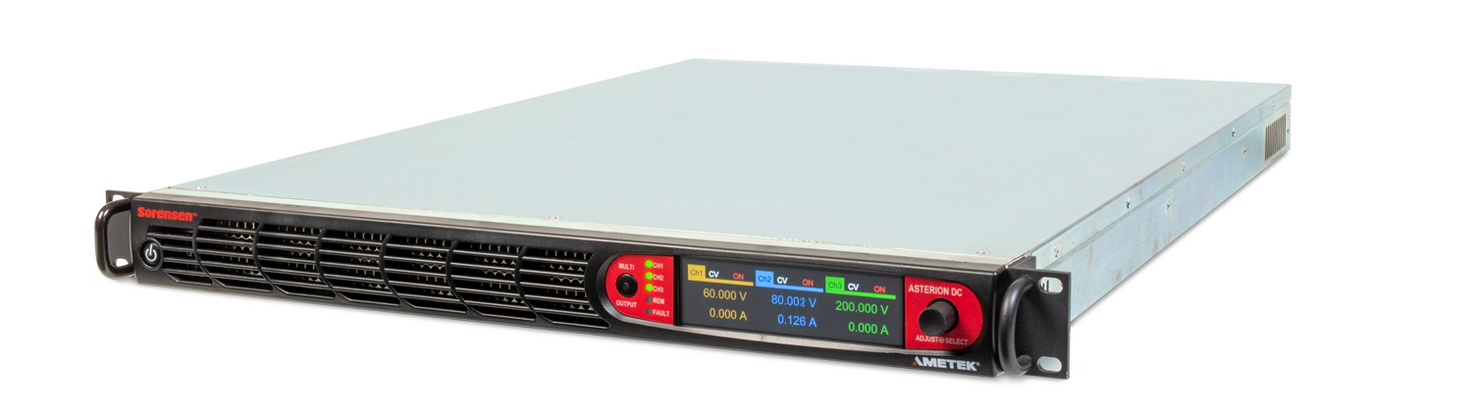

The Sorensen™ Asterion® DC ASM Series is the newest addition to the Asterion platform of power testing solutions. The new ASM Series features up to three independent, isolated, fixed-range outputs in a 1U high chassis. The Asterion DC ASM Series, just like the Asterion DC Series, offers complete remote programming and control via Virtual Panels™ GUI, and intuitive front panel touch screen operation. Additionally, the instrument can be controlled via standard LXI Ethernet, USB, and RS232 control interfaces, as well as through the optional GPIB control interface or isolated analog programming.
Product features
3 independent, isolated 1700W channels
Total power density up to 5100W in a 1U chassis
8 full power output channel options
Intuitive color touch panel control
Multi-language display for global operation
Multi-channel programmable sequencing, ramps, and delays
Active power factor correction (PFC)
Standard LXI LAN, USB, and RS232 interfaces
Optional isolated analog programming and GPIB interface
Full remote control via Virtual PanelsTM
Asterion DC ASM models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| ASM | 110VAC, 230VAC, 110/230VAC, 3 phase | N/A | 5100W | Output 1: 400 (N/A to 400)VDC Output 2: 400 (N/A to 400)VDC Output 3: 400 (N/A to 400)VDC | Output 1: 42A Output 2: 42A Output 3: 42A |
